Long lasting tree identification labels

Long lasting tree identification labels

While I have a detailed planting map in the computer, it is useful to be able to identify trees out in the real world so I made these metal name tags using sheet aluminium. The names are stamped out using individual letter stamp / punches.
September 09, 2013
  tree  technology
olmec

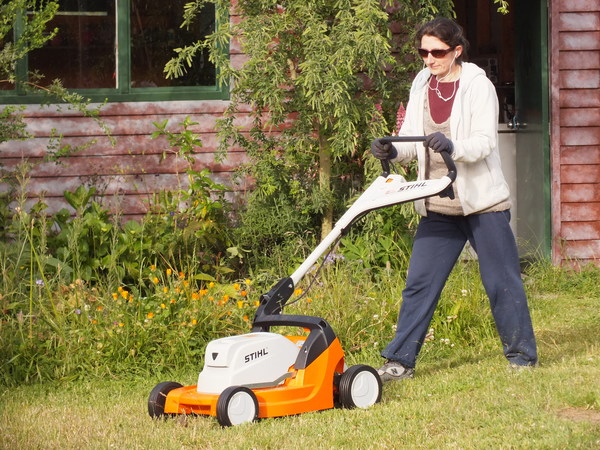

Electric lawnmower upgrade

Electric lawnmower upgrade

After trying various different 'eco' lawn mowing solutions we were struggling to find something that could live up to our expectations. Our latest attempt is so far proving quite satisfactory, despite my misgivings about battery powered tools capability to deliver enough power. Introducing the STIHL RMA 410C A quiet, exhaust free way of keeping the paths under control.
December 01, 2016
  lawn  electric  technology
olmec

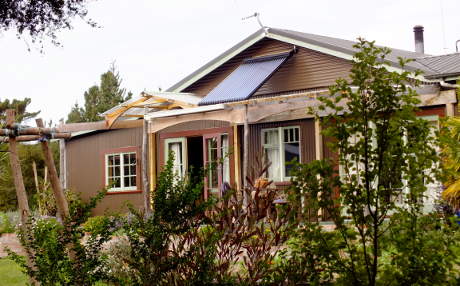

Solar - third time lucky

Solar - third time lucky

After several failed attempts to create a low cost, low tech solar water heater I gave in and purchased a complete kit off the shelf. It's only August but we've been having some nice fine days and the temperature has been getting up to high 50's. This unit has 20 evacuated glass tubes with some kind of antifreeze that exchanges heat with water that is pumped through the header. While I would have preferred a passive system I do like the modular nature and programmable smarts of the control centre.
August 21, 2013
  solar  energy  water  technology
olmec
Pumping with free energy

Pumping with free energy

Using water to pump water, now that is cool! I have been building a small ram pump for lifting water. The design uses off the shelf components assembled and then cast in concrete.

Overview: Water from a small creek enters a screened intake and is carried via 32mm polythene piping. This has a drop of perhaps a meter over about 70 - 80 meters. This connects to 18 meters of rigid steel 25mm pipe which drops a further 10 meters to the pumping unit. The outlet from the pump delivers water via 15mm poly tubing up to an elevation of around 30 - 40 meters.

While the device works technically it has a number of drawbacks:
  • The water delivery is very slow, perhaps 1 litre every 2 - 3 minutes. This is a result of the various measurements. More water in, dropped from higher or delivered lower would improve the situation.
  • The pump unit stops every day or so due to (I believe) air accumulating at key points in the delivery line. This can be improved by eliminating high points from the line.
  • Pump stops when river drops too low
August 15, 2015
  energy  water  technology
olmec
View 3 photos
A bespoke rain gauge

A bespoke rain gauge

Our high tech, digital rain gauge device finally failed and rather than replace it with another complex 'solution' I decided to construct a more basic, traditional instrument, only on a larger scale. Essentially this is just a funnel that intercepts and collects a given area of rainfall and concentrates it in a narrow tube, magnifying the results for easy measuring.

I purchased a cheap stainless steel funnel with a diameter of 52mm connected to 2 meters of clear plastic tubing with a diameter of 12.5mm.
The ratio of cross-sectional area between the two diameters is 17 so each 1mm of rainfall gathered by the funnel displays as 17mm in the tubing.

The tap at the bottom is required to drain the gauge after each measuring period.
August 25, 2019
  rain  technology  zone1
Olmec Sinclair
